Pile Hoops

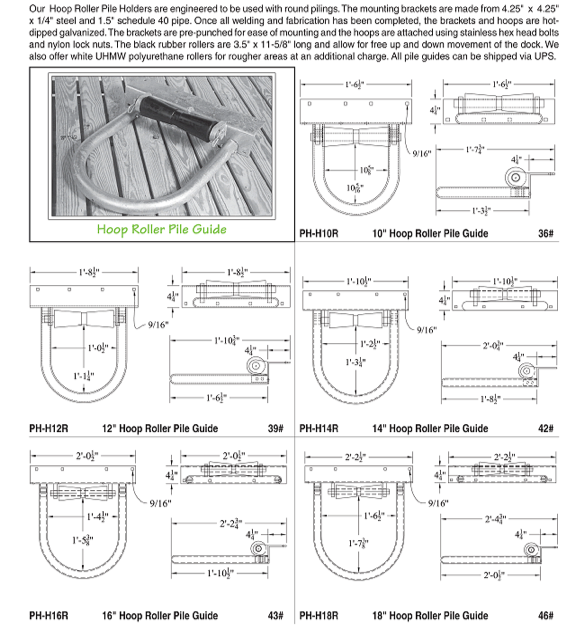

Hoop Pile Holders are engineered to be used with round pilings. The mounting brackets are made from 4.25″
x 4.25″ x 1/4″ steel and 1.5″ schedule 40 pipe. Once all welding and fabrication has been completed, the brackets and
hoops are hot-dipped galvanized. The brackets are pre-punched for ease of mounting and the hoops are attached using
stainless hex head bolts and nylon lock nuts. The black rubber rollers are 3.5″ x 11 5/8″ long and allow for free up and down movement of the dock.
